#include <dl_builder.h>

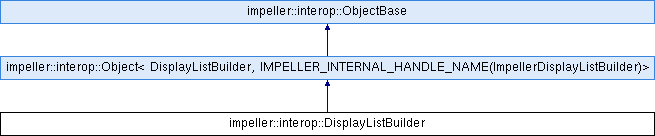

Inheritance diagram for impeller::interop::DisplayListBuilder:

Public Member Functions
	DisplayListBuilder (const ImpellerRect *rect)

	~DisplayListBuilder () override

	DisplayListBuilder (const DisplayListBuilder &)=delete

DisplayListBuilder &	operator= (const DisplayListBuilder &)=delete

void	Save ()

void	SaveLayer (const Rect &bounds, const Paint paint, const ImageFilter backdrop)

void	Restore ()

void	Scale (Size scale)

void	Rotate (Degrees angle)

void	Translate (Point translation)

Matrix	GetTransform () const

void	SetTransform (const Matrix &matrix)

void	Transform (const Matrix &matrix)

void	ResetTransform ()

uint32_t	GetSaveCount () const

void	RestoreToCount (uint32_t count)

void	ClipRect (const Rect &rect, flutter::DlClipOp op)

void	ClipOval (const Rect &rect, flutter::DlClipOp op)

void	ClipRoundedRect (const Rect &rect, const RoundingRadii &radii, flutter::DlClipOp op)

void	ClipPath (const Path &path, flutter::DlClipOp op)

void	DrawPaint (const Paint &paint)

void	DrawLine (const Point &from, const Point &to, const Paint &paint)

void	DrawDashedLine (const Point &from, const Point &to, Scalar on_length, Scalar off_length, const Paint &paint)

void	DrawRect (const Rect &rect, const Paint &paint)

void	DrawOval (const Rect &oval_bounds, const Paint &paint)

void	DrawRoundedRect (const Rect &rect, const RoundingRadii &radii, const Paint &paint)

void	DrawRoundedRectDifference (const Rect &outer_rect, const RoundingRadii &outer_radii, const Rect &inner_rect, const RoundingRadii &inner_radii, const Paint &paint)

void	DrawPath (const Path &path, const Paint &paint)

void	DrawTexture (const Texture &texture, const Point &point, flutter::DlImageSampling sampling, const Paint *paint)

void	DrawTextureRect (const Texture &texture, const Rect &src_rect, const Rect &dst_rect, flutter::DlImageSampling sampling, const Paint *paint)

void	DrawDisplayList (const DisplayList &dl, Scalar opacity)

void	DrawParagraph (const Paragraph &paragraph, Point point)

void	DrawShadow (const Path &path, const flutter::DlColor &color, float elevation, bool occluder_is_transparent, float device_pixel_ratio)

ScopedObject< DisplayList >	Build ()

Public Member Functions inherited from impeller::interop::ObjectBase
	ObjectBase ()=default

virtual	~ObjectBase ()=default

	ObjectBase (const ObjectBase &)=delete

	ObjectBase (ObjectBase &&)=delete

ObjectBase &	operator= (const ObjectBase &)=delete

ObjectBase &	operator= (ObjectBase &&)=delete

void	Retain ()

void	Release ()

uint64_t	GetRefCountForTests () const

Additional Inherited Members
Public Types inherited from impeller::interop::Object< DisplayListBuilder, IMPELLER_INTERNAL_HANDLE_NAME(ImpellerDisplayListBuilder)>
using	InteropClass = DisplayListBuilder

using	InteropCSibling = IMPELLER_INTERNAL_HANDLE_NAME(ImpellerDisplayListBuilder)

Static Public Member Functions inherited from impeller::interop::ObjectBase
static void	SafeRetain (void *ptr)

static void	SafeRelease (void *ptr)

Detailed Description

Definition at line 24 of file dl_builder.h.

Constructor & Destructor Documentation

◆ DisplayListBuilder() [1/2]

impeller::interop::DisplayListBuilder::DisplayListBuilder ( const ImpellerRect * rect )

explicit

Definition at line 11 of file dl_builder.cc.

12 : builder_(rect) {}

◆ ~DisplayListBuilder()

impeller::interop::DisplayListBuilder::~DisplayListBuilder ( )

overridedefault

◆ DisplayListBuilder() [2/2]

impeller::interop::DisplayListBuilder::DisplayListBuilder ( const DisplayListBuilder & )

delete

Member Function Documentation

◆ Build()

ScopedObject< DisplayList > impeller::interop::DisplayListBuilder::Build ( )

Definition at line 142 of file dl_builder.cc.

                                                     {
   return Create<DisplayList>(builder_.Build());
 }

◆ ClipOval()

void impeller::interop::DisplayListBuilder::ClipOval	(	const Rect &	rect,
		flutter::DlClipOp	op
	)

Definition at line 73 of file dl_builder.cc.

                                                                       {
   builder_.ClipOval(rect, op);
 }

◆ ClipPath()

void impeller::interop::DisplayListBuilder::ClipPath	(	const Path &	path,
		flutter::DlClipOp	op
	)

Definition at line 83 of file dl_builder.cc.

                                                                       {
   builder_.ClipPath(flutter::DlPath(path.GetPath()), op);
 }

References impeller::interop::Path::GetPath().

◆ ClipRect()

void impeller::interop::DisplayListBuilder::ClipRect	(	const Rect &	rect,
		flutter::DlClipOp	op
	)

Definition at line 69 of file dl_builder.cc.

                                                                       {
   builder_.ClipRect(rect, op);
 }

◆ ClipRoundedRect()

void impeller::interop::DisplayListBuilder::ClipRoundedRect	(	const Rect &	rect,
		const RoundingRadii &	radii,
		flutter::DlClipOp	op
	)

Definition at line 77 of file dl_builder.cc.

                                                              {
   builder_.ClipRoundRect(RoundRect::MakeRectRadii(rect, radii), op);
 }

References impeller::RoundRect::MakeRectRadii().

◆ DrawDashedLine()

void impeller::interop::DisplayListBuilder::DrawDashedLine	(	const Point &	from,
		const Point &	to,
		Scalar	on_length,
		Scalar	off_length,
		const Paint &	paint
	)

Definition at line 129 of file dl_builder.cc.

                                                             {
   builder_.DrawDashedLine(from,             //
                           to,               //
                           on_length,        //
                           off_length,       //
                           paint.GetPaint()  //
   );
 }

References impeller::interop::Paint::GetPaint().

◆ DrawDisplayList()

void impeller::interop::DisplayListBuilder::DrawDisplayList	(	const DisplayList &	dl,
		Scalar	opacity
	)

Definition at line 146 of file dl_builder.cc.

                                                          {
   builder_.DrawDisplayList(dl.GetDisplayList(), opacity);
 }

References impeller::interop::DisplayList::GetDisplayList().

◆ DrawLine()

void impeller::interop::DisplayListBuilder::DrawLine	(	const Point &	from,
		const Point &	to,
		const Paint &	paint
	)

Definition at line 123 of file dl_builder.cc.

                                                       {
   builder_.DrawLine(from, to, paint.GetPaint());
 }

References impeller::interop::Paint::GetPaint().

◆ DrawOval()

void impeller::interop::DisplayListBuilder::DrawOval	(	const Rect &	oval_bounds,
		const Paint &	paint
	)

Definition at line 91 of file dl_builder.cc.

                                                                              {
   builder_.DrawOval(oval_bounds, paint.GetPaint());
 }

References impeller::interop::Paint::GetPaint().

◆ DrawPaint()

void impeller::interop::DisplayListBuilder::DrawPaint ( const Paint & paint )

Definition at line 119 of file dl_builder.cc.

                                                      {
   builder_.DrawPaint(paint.GetPaint());
 }

References impeller::interop::Paint::GetPaint().

◆ DrawParagraph()

void impeller::interop::DisplayListBuilder::DrawParagraph	(	const Paragraph &	paragraph,
		Point	point
	)

Definition at line 175 of file dl_builder.cc.

                                                     {
   const auto& handle = paragraph.GetHandle();
   if (!handle) {
     return;
   }
   handle->Paint(&builder_, point.x, point.y);
 }

References impeller::interop::Paragraph::GetHandle(), impeller::TPoint< T >::x, and impeller::TPoint< T >::y.

◆ DrawPath()

void impeller::interop::DisplayListBuilder::DrawPath	(	const Path &	path,
		const Paint &	paint
	)

Definition at line 115 of file dl_builder.cc.

                                                                       {
   builder_.DrawPath(flutter::DlPath(path.GetPath()), paint.GetPaint());
 }

References impeller::interop::Paint::GetPaint(), and impeller::interop::Path::GetPath().

◆ DrawRect()

void impeller::interop::DisplayListBuilder::DrawRect	(	const Rect &	rect,
		const Paint &	paint
	)

Definition at line 87 of file dl_builder.cc.

                                                                       {
   builder_.DrawRect(rect, paint.GetPaint());
 }

References impeller::interop::Paint::GetPaint().

◆ DrawRoundedRect()

void impeller::interop::DisplayListBuilder::DrawRoundedRect	(	const Rect &	rect,
		const RoundingRadii &	radii,
		const Paint &	paint
	)

Definition at line 95 of file dl_builder.cc.

                                                              {
   builder_.DrawRoundRect(RoundRect::MakeRectRadii(rect, radii),
                          paint.GetPaint());
 }

References impeller::interop::Paint::GetPaint(), and impeller::RoundRect::MakeRectRadii().

◆ DrawRoundedRectDifference()

void impeller::interop::DisplayListBuilder::DrawRoundedRectDifference	(	const Rect &	outer_rect,
		const RoundingRadii &	outer_radii,
		const Rect &	inner_rect,
		const RoundingRadii &	inner_radii,
		const Paint &	paint
	)

Definition at line 102 of file dl_builder.cc.

                         {
   builder_.DrawDiffRoundRect(
       RoundRect::MakeRectRadii(outer_rect, outer_radii),  //
       RoundRect::MakeRectRadii(inner_rect, inner_radii),  //
       paint.GetPaint()                                    //
   );
 }

References impeller::interop::Paint::GetPaint(), and impeller::RoundRect::MakeRectRadii().

◆ DrawShadow()

void impeller::interop::DisplayListBuilder::DrawShadow	(	const Path &	path,
		const flutter::DlColor &	color,
		float	elevation,
		bool	occluder_is_transparent,
		float	device_pixel_ratio
	)

Definition at line 184 of file dl_builder.cc.

                                                               {
   builder_.DrawShadow(flutter::DlPath(path.GetPath()),  // path
                       color,                            // shadow color
                       elevation,                        // elevation
                       occluder_is_transparent,          // occluder transparency
                       device_pixel_ratio                // dpr
   );
 }

References impeller::interop::Path::GetPath().

◆ DrawTexture()

void impeller::interop::DisplayListBuilder::DrawTexture	(	const Texture &	texture,
		const Point &	point,
		flutter::DlImageSampling	sampling,
		const Paint *	paint
	)

Definition at line 151 of file dl_builder.cc.

                                                          {
   builder_.DrawImage(texture.MakeImage(),                             //
                      point,                                           //
                      sampling,                                        //
                      paint == nullptr ? nullptr : &paint->GetPaint()  //
   );
 }

References impeller::interop::Paint::GetPaint(), and impeller::interop::Texture::MakeImage().

◆ DrawTextureRect()

void impeller::interop::DisplayListBuilder::DrawTextureRect	(	const Texture &	texture,
		const Rect &	src_rect,
		const Rect &	dst_rect,
		flutter::DlImageSampling	sampling,
		const Paint *	paint
	)

Definition at line 162 of file dl_builder.cc.

                                                              {
   builder_.DrawImageRect(texture.MakeImage(),                             //
                          src_rect,                                        //
                          dst_rect,                                        //
                          sampling,                                        //
                          paint == nullptr ? nullptr : &paint->GetPaint()  //
   );
 }

References impeller::interop::Paint::GetPaint(), and impeller::interop::Texture::MakeImage().

◆ GetSaveCount()

uint32_t impeller::interop::DisplayListBuilder::GetSaveCount ( ) const

Definition at line 61 of file dl_builder.cc.

                                                 {
   return builder_.GetSaveCount();
 }

◆ GetTransform()

Matrix impeller::interop::DisplayListBuilder::GetTransform ( ) const

Definition at line 45 of file dl_builder.cc.

                                               {
   return builder_.GetMatrix();
 }

◆ operator=()

DisplayListBuilder& impeller::interop::DisplayListBuilder::operator= ( const DisplayListBuilder & )

delete

◆ ResetTransform()

void impeller::interop::DisplayListBuilder::ResetTransform ( )

Definition at line 57 of file dl_builder.cc.

                                         {
   builder_.TransformReset();
 }

◆ Restore()

void impeller::interop::DisplayListBuilder::Restore ( )

Definition at line 29 of file dl_builder.cc.

                                  {
   builder_.Restore();
 }

◆ RestoreToCount()

void impeller::interop::DisplayListBuilder::RestoreToCount ( uint32_t count )

Definition at line 65 of file dl_builder.cc.

                                                       {
   builder_.RestoreToCount(count);
 }

◆ Rotate()

void impeller::interop::DisplayListBuilder::Rotate ( Degrees angle )

Definition at line 37 of file dl_builder.cc.

                                              {
   builder_.Rotate(angle.degrees);
 }

References impeller::Degrees::degrees.

◆ Save()

void impeller::interop::DisplayListBuilder::Save ( )

Definition at line 16 of file dl_builder.cc.

                               {
   builder_.Save();
 }

◆ SaveLayer()

void impeller::interop::DisplayListBuilder::SaveLayer	(	const Rect &	bounds,
		const Paint *	paint,
		const ImageFilter *	backdrop
	)

Definition at line 20 of file dl_builder.cc.

                                                                 {
   builder_.SaveLayer(
       bounds,                                           //
       paint == nullptr ? nullptr : &paint->GetPaint(),  //
       backdrop == nullptr ? nullptr : backdrop->GetImageFilter().get());
 }

References impeller::interop::ImageFilter::GetImageFilter(), and impeller::interop::Paint::GetPaint().

◆ Scale()

void impeller::interop::DisplayListBuilder::Scale ( Size scale )

Definition at line 33 of file dl_builder.cc.

                                          {
   builder_.Scale(scale.width, scale.height);
 }

References impeller::TSize< T >::height, and impeller::TSize< T >::width.

◆ SetTransform()

void impeller::interop::DisplayListBuilder::SetTransform ( const Matrix & matrix )

Definition at line 49 of file dl_builder.cc.

                                                           {
   builder_.SetTransform(matrix);
 }

◆ Transform()

void impeller::interop::DisplayListBuilder::Transform ( const Matrix & matrix )

Definition at line 53 of file dl_builder.cc.

                                                        {
   builder_.Transform(matrix);
 }

◆ Translate()

void impeller::interop::DisplayListBuilder::Translate ( Point translation )

Definition at line 41 of file dl_builder.cc.

                                                     {
   builder_.Translate(translation.x, translation.y);
 }

References impeller::TPoint< T >::x, and impeller::TPoint< T >::y.

The documentation for this class was generated from the following files:

impeller/toolkit/interop/dl_builder.h
impeller/toolkit/interop/dl_builder.cc

Public Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ DisplayListBuilder() [1/2]

◆ ~DisplayListBuilder()

◆ DisplayListBuilder() [2/2]

Member Function Documentation

◆ Build()

◆ ClipOval()

◆ ClipPath()

◆ ClipRect()

◆ ClipRoundedRect()

◆ DrawDashedLine()

◆ DrawDisplayList()

◆ DrawLine()

◆ DrawOval()

◆ DrawPaint()

◆ DrawParagraph()

◆ DrawPath()

◆ DrawRect()

◆ DrawRoundedRect()

◆ DrawRoundedRectDifference()

◆ DrawShadow()

◆ DrawTexture()

◆ DrawTextureRect()

◆ GetSaveCount()

◆ GetTransform()

◆ operator=()

◆ ResetTransform()

◆ Restore()

◆ RestoreToCount()

◆ Rotate()

◆ Save()

◆ SaveLayer()

◆ Scale()

◆ SetTransform()

◆ Transform()

◆ Translate()
