impeller::interop::SwapchainVK Class Referencefinal

#include <swapchain_vk.h>

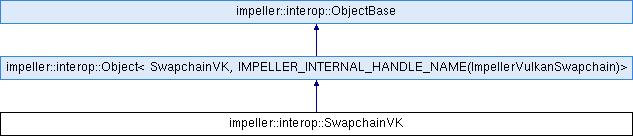

Inheritance diagram for impeller::interop::SwapchainVK:
impeller::interop::Object< SwapchainVK, IMPELLER_INTERNAL_HANDLE_NAME(ImpellerVulkanSwapchain)> impeller::interop::ObjectBase

Public Member Functions

 SwapchainVK (Context &context, VkSurfaceKHR surface)

 ~SwapchainVK ()

bool IsValid () const

 SwapchainVK (const SwapchainVK &)=delete

SwapchainVKoperator= (const SwapchainVK &)=delete

ScopedObject< SurfaceVKAcquireNextSurface ()

- Public Member Functions inherited from impeller::interop::ObjectBase
 ObjectBase ()=default

virtual ~ObjectBase ()=default

 ObjectBase (const ObjectBase &)=delete

 ObjectBase (ObjectBase &&)=delete

ObjectBaseoperator= (const ObjectBase &)=delete

ObjectBaseoperator= (ObjectBase &&)=delete

void Retain ()

void Release ()

uint64_t GetRefCountForTests () const


Additional Inherited Members

- Public Types inherited from impeller::interop::Object< SwapchainVK, IMPELLER_INTERNAL_HANDLE_NAME(ImpellerVulkanSwapchain)>
using InteropClass = SwapchainVK

using InteropCSibling = IMPELLER_INTERNAL_HANDLE_NAME(ImpellerVulkanSwapchain)

- Static Public Member Functions inherited from impeller::interop::ObjectBase
static void SafeRetain (void *ptr)

static void SafeRelease (void *ptr)


Detailed Description

Definition at line 16 of file swapchain_vk.h.

Constructor & Destructor Documentation

◆ SwapchainVK() [1/2]

impeller::interop::SwapchainVK::SwapchainVK ( Context context,
VkSurfaceKHR  surface
)

Definition at line 11 of file swapchain_vk.cc.

12  : context_(Ref(&context)) {
13  if (!context.IsVulkan()) {
14  VALIDATION_LOG << "Context is not Vulkan.";
15  return;
16  }
17
18  if (!c_surface) {
19  VALIDATION_LOG << "Invalid surface.";
20  return;
21  }
22
23  // Creating a unique object from a raw handle requires fetching the owner
24  // manually.
25  auto surface = vk::UniqueSurfaceKHR(
26  vk::SurfaceKHR{c_surface},
27  impeller::ContextVK::Cast(*context_->GetContext()).GetInstance());
28  auto swapchain = impeller::SwapchainVK::Create(context.GetContext(), //
29  std::move(surface), //
30  ISize::MakeWH(1, 1) //
31  );
32  if (!swapchain) {
33  VALIDATION_LOG << "Could not create Vulkan swapchain.";
34  return;
35  }
36  swapchain_ = std::move(swapchain);
37 }
static ContextVK & Cast(Context &base)
Definition: backend_cast.h:13
vk::Instance GetInstance() const
Definition: context_vk.cc:585
static std::shared_ptr< SwapchainVK > Create(const std::shared_ptr< Context > &context, vk::UniqueSurfaceKHR surface, const ISize &size, bool enable_msaa=true)
Definition: swapchain_vk.cc:18
ScopedObject< Object > Ref(Object *object)
Definition: object.h:146
static constexpr TSize MakeWH(Type width, Type height)
Definition: size.h:43
#define VALIDATION_LOG
Definition: validation.h:91

References impeller::BackendCast< ContextVK, Context >::Cast(), impeller::SwapchainVK::Create(), impeller::interop::Context::GetContext(), impeller::ContextVK::GetInstance(), impeller::interop::Context::IsVulkan(), impeller::TSize< T >::MakeWH(), and VALIDATION_LOG.

◆ ~SwapchainVK()

impeller::interop::SwapchainVK::~SwapchainVK ( )
default

◆ SwapchainVK() [2/2]

impeller::interop::SwapchainVK::SwapchainVK ( const SwapchainVK )
delete

Member Function Documentation

◆ AcquireNextSurface()

ScopedObject< SurfaceVK > impeller::interop::SwapchainVK::AcquireNextSurface ( )

Definition at line 45 of file swapchain_vk.cc.

45  {
46  if (!IsValid()) {
47  return nullptr;
48  }
49
50  auto impeller_surface = swapchain_->AcquireNextDrawable();
51  if (!impeller_surface) {
52  VALIDATION_LOG << "Could not acquire next drawable.";
53  return nullptr;
54  }
55
56  auto surface = Create<SurfaceVK>(*context_, std::move(impeller_surface));
57  if (!surface || !surface->IsValid()) {
58  VALIDATION_LOG << "Could not create valid surface.";
59  return nullptr;
60  }
61
62  return surface;
63 }

References IsValid(), and VALIDATION_LOG.

◆ IsValid()

bool impeller::interop::SwapchainVK::IsValid ( ) const

Definition at line 41 of file swapchain_vk.cc.

41  {
42  return swapchain_ && swapchain_->IsValid();
43 }

Referenced by AcquireNextSurface().

◆ operator=()

SwapchainVK& impeller::interop::SwapchainVK::operator= ( const SwapchainVK )
delete

The documentation for this class was generated from the following files:
