Flutter Impeller
impeller::AiksPlayground Class Reference

#include <aiks_playground.h>

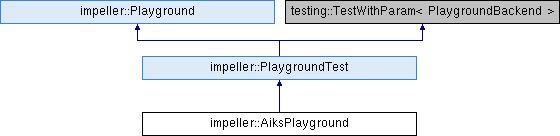

Inheritance diagram for impeller::AiksPlayground:
impeller::PlaygroundTest impeller::Playground

Public Types

using AiksDlPlaygroundCallback = std::function< sk_sp< flutter::DisplayList >()>

- Public Types inherited from impeller::Playground
using SinglePassCallback = std::function< bool(RenderPass &pass)>

using RenderCallback = std::function< bool(RenderTarget &render_target)>

using GLProcAddressResolver = std::function< void *(const char *proc_name)>

using VKProcAddressResolver = std::function< void *(void *instance, const char *proc_name)>


Public Member Functions

 AiksPlayground ()

 ~AiksPlayground ()

void TearDown () override

void SetTypographerContext (std::shared_ptr< TypographerContext > typographer_context)

bool OpenPlaygroundHere (const AiksDlPlaygroundCallback &callback)

bool OpenPlaygroundHere (const sk_sp< flutter::DisplayList > &list)

- Public Member Functions inherited from impeller::PlaygroundTest
 PlaygroundTest ()

virtual ~PlaygroundTest ()

void SetUp () override

void TearDown () override

PlaygroundBackend GetBackend () const

std::unique_ptr< fml::Mapping > OpenAssetAsMapping (std::string asset_name) const override

RuntimeStage::Map OpenAssetAsRuntimeStage (const char *asset_name) const

std::string GetWindowTitle () const override

- Public Member Functions inherited from impeller::Playground
 Playground (PlaygroundSwitches switches)

virtual ~Playground ()

void SetupContext (PlaygroundBackend backend, const PlaygroundSwitches &switches)

void SetupWindow ()

void TeardownWindow ()

bool IsPlaygroundEnabled () const

Point GetCursorPosition () const

ISize GetWindowSize () const

Point GetContentScale () const

Scalar GetSecondsElapsed () const
 Get the amount of time elapsed from the start of the playground's execution. More...

std::shared_ptr< ContextGetContext () const

std::shared_ptr< ContextMakeContext () const

bool OpenPlaygroundHere (const RenderCallback &render_callback)

bool OpenPlaygroundHere (SinglePassCallback pass_callback)

std::shared_ptr< TextureCreateTextureForFixture (const char *fixture_name, bool enable_mipmapping=false) const

std::shared_ptr< TextureCreateTextureCubeForFixture (std::array< const char *, 6 > fixture_names) const

fml::Status SetCapabilities (const std::shared_ptr< Capabilities > &capabilities)

bool WillRenderSomething () const
 Returns true if OpenPlaygroundHere will actually render anything. More...

GLProcAddressResolver CreateGLProcAddressResolver () const

VKProcAddressResolver CreateVKProcAddressResolver () const

void SetGPUDisabled (bool disabled) const
 Mark the GPU as unavilable. More...


Static Public Member Functions

static bool ImGuiBegin (const char *name, bool *p_open, ImGuiWindowFlags flags)

- Static Public Member Functions inherited from impeller::Playground
static bool ShouldOpenNewPlaygrounds ()

static std::shared_ptr< CompressedImageLoadFixtureImageCompressed (std::shared_ptr< fml::Mapping > mapping)

static std::optional< DecompressedImageDecodeImageRGBA (const std::shared_ptr< CompressedImage > &compressed)

static std::shared_ptr< TextureCreateTextureForMapping (const std::shared_ptr< Context > &context, std::shared_ptr< fml::Mapping > mapping, bool enable_mipmapping=false)

static bool SupportsBackend (PlaygroundBackend backend)


Additional Inherited Members

- Protected Member Functions inherited from impeller::Playground
void SetWindowSize (ISize size)

- Protected Attributes inherited from impeller::Playground
const PlaygroundSwitches switches_


Detailed Description

Definition at line 16 of file aiks_playground.h.

Member Typedef Documentation

◆ AiksDlPlaygroundCallback

using impeller::AiksPlayground::AiksDlPlaygroundCallback = std::function<sk_sp<flutter::DisplayList>()>

Definition at line 18 of file aiks_playground.h.

Constructor & Destructor Documentation

◆ AiksPlayground()

impeller::AiksPlayground::AiksPlayground ( )

Definition at line 16 of file aiks_playground.cc.

17  : typographer_context_(TypographerContextSkia::Make()) {}
static std::shared_ptr< TypographerContext > Make()

◆ ~AiksPlayground()

impeller::AiksPlayground::~AiksPlayground ( )
default

Member Function Documentation

◆ ImGuiBegin()

bool impeller::AiksPlayground::ImGuiBegin ( const char *  name,
bool *  p_open,
ImGuiWindowFlags  flags
)
static

Definition at line 30 of file aiks_playground.cc.

32  {
33  ImGui::Begin(name, p_open, flags);
34  return true;
35 }

Referenced by impeller::testing::BlendModeTest(), and impeller::testing::TEST_P().

◆ OpenPlaygroundHere() [1/2]

bool impeller::AiksPlayground::OpenPlaygroundHere ( const AiksDlPlaygroundCallback callback)

Definition at line 42 of file aiks_playground.cc.

43  {
44  AiksContext renderer(GetContext(), typographer_context_);
45
46  if (!renderer.IsValid()) {
47  return false;
48  }
49
51  [&renderer, &callback](RenderTarget& render_target) -> bool {
52  return RenderToTarget(
53  renderer.GetContentContext(), //
54  render_target, //
55  callback(), //
56  Rect::MakeWH(render_target.GetRenderTargetSize().width,
57  render_target.GetRenderTargetSize().height), //
58  /*reset_host_buffer=*/true, //
59  /*is_onscreen=*/false);
60  });
61 }
bool OpenPlaygroundHere(const RenderCallback &render_callback)
Definition: playground.cc:201
std::shared_ptr< Context > GetContext() const
Definition: playground.cc:91
bool RenderToTarget(ContentContext &context, RenderTarget render_target, const sk_sp< flutter::DisplayList > &display_list, Rect cull_rect, bool reset_host_buffer, bool is_onscreen)
Render the provided display list to the render target.
constexpr static TRect MakeWH(Type width, Type height)
Definition: rect.h:140

References impeller::AiksContext::GetContentContext(), impeller::Playground::GetContext(), impeller::RenderTarget::GetRenderTargetSize(), impeller::TSize< T >::height, impeller::AiksContext::IsValid(), impeller::TRect< Scalar >::MakeWH(), impeller::Playground::OpenPlaygroundHere(), impeller::RenderToTarget(), and impeller::TSize< T >::width.

Referenced by impeller::testing::CanRenderConicalGradientWithDithering(), impeller::testing::CanRenderLinearGradientWithDithering(), impeller::testing::CanRenderRadialGradientWithDithering(), impeller::testing::CanRenderSweepGradientWithDithering(), and OpenPlaygroundHere().

◆ OpenPlaygroundHere() [2/2]

bool impeller::AiksPlayground::OpenPlaygroundHere ( const sk_sp< flutter::DisplayList > &  list)

Definition at line 37 of file aiks_playground.cc.

38  {
39  return OpenPlaygroundHere([list]() { return list; });
40 }
bool OpenPlaygroundHere(const AiksDlPlaygroundCallback &callback)

References OpenPlaygroundHere().

◆ SetTypographerContext()

void impeller::AiksPlayground::SetTypographerContext ( std::shared_ptr< TypographerContext typographer_context)

Definition at line 21 of file aiks_playground.cc.

22  {
23  typographer_context_ = std::move(typographer_context);
24 }

◆ TearDown()

void impeller::AiksPlayground::TearDown ( )
override

Definition at line 26 of file aiks_playground.cc.

26  {
28 }

References impeller::PlaygroundTest::TearDown().


The documentation for this class was generated from the following files:
