impeller::FillPathSourceGeometry Class Referenceabstract

An abstract Geometry base class that produces fillable vertices for the interior of any |PathSource| provided by the type-specific subclass. More...

#include <fill_path_geometry.h>

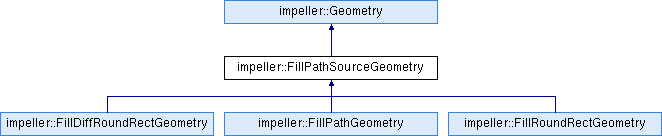

Inheritance diagram for impeller::FillPathSourceGeometry:
impeller::Geometry impeller::FillDiffRoundRectGeometry impeller::FillPathGeometry impeller::FillRoundRectGeometry

Public Member Functions

 ~FillPathSourceGeometry () override

bool CoversArea (const Matrix &transform, const Rect &rect) const override
 Determines if this geometry, transformed by the given transform, will completely cover all surface area of the given rect. More...

- Public Member Functions inherited from impeller::Geometry
virtual ~Geometry ()

virtual bool IsAxisAlignedRect () const

virtual bool CanApplyMaskFilter () const

virtual Scalar ComputeAlphaCoverage (const Matrix &transform) const


Protected Member Functions

 FillPathSourceGeometry (std::optional< Rect > inner_rect)

virtual const PathSourceGetSource () const =0


Additional Inherited Members

- Static Public Member Functions inherited from impeller::Geometry
static std::unique_ptr< GeometryMakeFillPath (const flutter::DlPath &path, std::optional< Rect > inner_rect=std::nullopt)

static std::unique_ptr< GeometryMakeStrokePath (const flutter::DlPath &path, const StrokeParameters &stroke={})

static std::unique_ptr< GeometryMakeCover ()

static std::unique_ptr< GeometryMakeRect (const Rect &rect)

static std::unique_ptr< GeometryMakeOval (const Rect &rect)

static std::unique_ptr< GeometryMakeLine (const Point &p0, const Point &p1, const StrokeParameters &stroke)

static std::unique_ptr< GeometryMakeCircle (const Point &center, Scalar radius)

static std::unique_ptr< GeometryMakeStrokedCircle (const Point &center, Scalar radius, Scalar stroke_width)

static std::unique_ptr< GeometryMakeFilledArc (const Rect &oval_bounds, Degrees start, Degrees sweep, bool include_center)

static std::unique_ptr< GeometryMakeStrokedArc (const Rect &oval_bounds, Degrees start, Degrees sweep, const StrokeParameters &stroke)

static std::unique_ptr< GeometryMakeRoundRect (const Rect &rect, const Size &radii)

static std::unique_ptr< GeometryMakeRoundSuperellipse (const Rect &rect, Scalar corner_radius)

static Scalar ComputeStrokeAlphaCoverage (const Matrix &entity, Scalar stroke_width)
 Compute an alpha value to simulate lower coverage of fractional pixel strokes. More...

static GeometryResult ComputePositionGeometry (const ContentContext &renderer, const Tessellator::VertexGenerator &generator, const Entity &entity, RenderPass &pass)


Detailed Description

An abstract Geometry base class that produces fillable vertices for the interior of any |PathSource| provided by the type-specific subclass.

Definition at line 19 of file fill_path_geometry.h.

Constructor & Destructor Documentation

◆ ~FillPathSourceGeometry()

impeller::FillPathSourceGeometry::~FillPathSourceGeometry ( )
override

Definition at line 18 of file fill_path_geometry.cc.

18 {}

◆ FillPathSourceGeometry()

impeller::FillPathSourceGeometry::FillPathSourceGeometry ( std::optional< Rect inner_rect)
explicitprotected

Definition at line 15 of file fill_path_geometry.cc.

16  : inner_rect_(inner_rect) {}

Member Function Documentation

◆ CoversArea()

bool impeller::FillPathSourceGeometry::CoversArea ( const Matrix transform,
const Rect rect
) const
overridevirtual

Determines if this geometry, transformed by the given transform, will completely cover all surface area of the given rect.

This is a conservative estimate useful for certain optimizations.

Returns
true if the transformed geometry is guaranteed to cover the given rect. May return false in many undetected cases where the transformed geometry does in fact cover the rect.

Reimplemented from impeller::Geometry.

Reimplemented in impeller::FillRoundRectGeometry.

Definition at line 81 of file fill_path_geometry.cc.

82  {
83  if (!inner_rect_.has_value()) {
84  return false;
85  }
86  if (!transform.IsTranslationScaleOnly()) {
87  return false;
88  }
89  Rect coverage = inner_rect_->TransformBounds(transform);
90  return coverage.Contains(rect);
91 }
TRect< Scalar > Rect
Definition: rect.h:792

References impeller::TRect< T >::Contains(), and transform.

◆ GetSource()

virtual const PathSource& impeller::FillPathSourceGeometry::GetSource ( ) const
protectedpure virtual

The PathSource object that will be iterated to produce the filled vertices.

Implemented in impeller::FillRoundRectGeometry, impeller::FillDiffRoundRectGeometry, and impeller::FillPathGeometry.
