impeller::interop::Surface Class Reference

#include <surface.h>

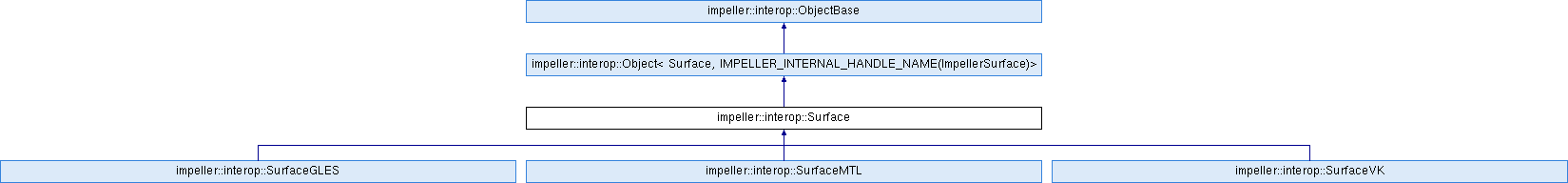

Inheritance diagram for impeller::interop::Surface:
impeller::interop::Object< Surface, IMPELLER_INTERNAL_HANDLE_NAME(ImpellerSurface)> impeller::interop::ObjectBase impeller::interop::SurfaceGLES impeller::interop::SurfaceMTL impeller::interop::SurfaceVK

Public Member Functions

 ~Surface () override

 Surface (const Surface &)=delete

Surfaceoperator= (const Surface &)=delete

bool IsValid () const

bool DrawDisplayList (const DisplayList &dl) const

bool Present () const

- Public Member Functions inherited from impeller::interop::ObjectBase
 ObjectBase ()=default

virtual ~ObjectBase ()=default

 ObjectBase (const ObjectBase &)=delete

 ObjectBase (ObjectBase &&)=delete

ObjectBaseoperator= (const ObjectBase &)=delete

ObjectBaseoperator= (ObjectBase &&)=delete

void Retain ()

void Release ()

uint64_t GetRefCountForTests () const


Protected Member Functions

 Surface (Context &context, std::shared_ptr< impeller::Surface > surface)


Additional Inherited Members

- Public Types inherited from impeller::interop::Object< Surface, IMPELLER_INTERNAL_HANDLE_NAME(ImpellerSurface)>
using InteropClass = Surface

using InteropCSibling = IMPELLER_INTERNAL_HANDLE_NAME(ImpellerSurface)

- Static Public Member Functions inherited from impeller::interop::ObjectBase
static void SafeRetain (void *ptr)

static void SafeRelease (void *ptr)


Detailed Description

Definition at line 18 of file surface.h.

Constructor & Destructor Documentation

◆ ~Surface()

impeller::interop::Surface::~Surface ( )
overridedefault

◆ Surface() [1/2]

impeller::interop::Surface::Surface ( const Surface )
delete

◆ Surface() [2/2]

impeller::interop::Surface::Surface ( Context context,
std::shared_ptr< impeller::Surface surface
)
explicitprotected

Definition at line 14 of file surface.cc.

15  : context_(Ref(&context)), surface_(std::move(surface)) {
16  is_valid_ =
17  context_ && context_->IsValid() && surface_ && surface_->IsValid();
18 }
ScopedObject< Object > Ref(Object *object)
Definition: object.h:146

Member Function Documentation

◆ DrawDisplayList()

bool impeller::interop::Surface::DrawDisplayList ( const DisplayList dl) const

Definition at line 26 of file surface.cc.

26  {
27  if (!IsValid() || !dl.IsValid()) {
28  return false;
29  }
30
31  auto display_list = dl.GetDisplayList();
32  auto& content_context = context_->GetAiksContext().GetContentContext();
33  auto render_target = surface_->GetRenderTarget();
34
35  const auto cull_rect = Rect::MakeSize(surface_->GetSize());
36
37  auto result = RenderToTarget(content_context, render_target, display_list,
38  cull_rect, /*reset_host_buffer=*/true);
39  context_->GetContext()->ResetThreadLocalState();
40  return result;
41 }
bool IsValid() const
Definition: surface.cc:22
bool RenderToTarget(ContentContext &context, RenderTarget render_target, const sk_sp< flutter::DisplayList > &display_list, Rect cull_rect, bool reset_host_buffer, bool is_onscreen)
Render the provided display list to the render target.
constexpr static TRect MakeSize(const TSize< U > &size)
Definition: rect.h:150

References impeller::interop::DisplayList::GetDisplayList(), impeller::interop::DisplayList::IsValid(), IsValid(), impeller::TRect< Scalar >::MakeSize(), and impeller::RenderToTarget().

◆ IsValid()

bool impeller::interop::Surface::IsValid ( ) const

Definition at line 22 of file surface.cc.

22  {
23  return is_valid_;
24 }

Referenced by DrawDisplayList(), and Present().

◆ operator=()

Surface& impeller::interop::Surface::operator= ( const Surface )
delete

◆ Present()

bool impeller::interop::Surface::Present ( ) const

Definition at line 43 of file surface.cc.

43  {
44  if (!IsValid()) {
45  return false;
46  }
47  return surface_->Present();
48 }

References IsValid().


The documentation for this class was generated from the following files:
