Flutter Impeller
impeller::interop::testing::PlaygroundTest Class Reference

#include <playground_test.h>

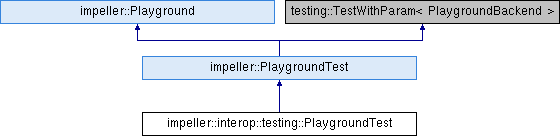

Inheritance diagram for impeller::interop::testing::PlaygroundTest:
impeller::PlaygroundTest impeller::Playground

Public Types

using InteropPlaygroundCallback = std::function< bool(const ScopedObject< Context > &context, const ScopedObject< Surface > &surface)>

- Public Types inherited from impeller::Playground
using SinglePassCallback = std::function< bool(RenderPass &pass)>

using RenderCallback = std::function< bool(RenderTarget &render_target)>

using GLProcAddressResolver = std::function< void *(const char *proc_name)>

using VKProcAddressResolver = std::function< void *(void *instance, const char *proc_name)>


Public Member Functions

 PlaygroundTest ()

 ~PlaygroundTest () override

 PlaygroundTest (const PlaygroundTest &)=delete

PlaygroundTestoperator= (const PlaygroundTest &)=delete

void SetUp () override

void TearDown () override

ScopedObject< ContextCreateContext () const

ScopedObject< ContextGetInteropContext ()

hpp::Context GetHPPContext ()

hpp::Texture OpenAssetAsHPPTexture (std::string asset_name)

bool OpenPlaygroundHere (InteropPlaygroundCallback callback)

std::unique_ptr< hpp::Mapping > OpenAssetAsHPPMapping (std::string asset_name) const

- Public Member Functions inherited from impeller::PlaygroundTest
 PlaygroundTest ()

void SetUp () override

void TearDown () override

PlaygroundBackend GetBackend () const

std::unique_ptr< fml::Mapping > OpenAssetAsMapping (std::string asset_name) const override

RuntimeStage::Map OpenAssetAsRuntimeStage (const char *asset_name) const

std::string GetWindowTitle () const override

- Public Member Functions inherited from impeller::Playground
 Playground (PlaygroundSwitches switches)

virtual ~Playground ()

void SetupContext (PlaygroundBackend backend, const PlaygroundSwitches &switches)

void SetupWindow ()

void TeardownWindow ()

bool IsPlaygroundEnabled () const

Point GetCursorPosition () const

ISize GetWindowSize () const

Point GetContentScale () const

Scalar GetSecondsElapsed () const
 Get the amount of time elapsed from the start of the playground's execution. More...

std::shared_ptr< ContextGetContext () const

std::shared_ptr< ContextMakeContext () const

bool OpenPlaygroundHere (const RenderCallback &render_callback)

bool OpenPlaygroundHere (SinglePassCallback pass_callback)

std::shared_ptr< TextureCreateTextureForFixture (const char *fixture_name, bool enable_mipmapping=false) const

std::shared_ptr< TextureCreateTextureCubeForFixture (std::array< const char *, 6 > fixture_names) const

fml::Status SetCapabilities (const std::shared_ptr< Capabilities > &capabilities)

bool WillRenderSomething () const
 Returns true if OpenPlaygroundHere will actually render anything. More...

GLProcAddressResolver CreateGLProcAddressResolver () const

VKProcAddressResolver CreateVKProcAddressResolver () const

void SetGPUDisabled (bool disabled) const
 Mark the GPU as unavilable. More...


Additional Inherited Members

- Static Public Member Functions inherited from impeller::Playground
static bool ShouldOpenNewPlaygrounds ()

static std::shared_ptr< CompressedImageLoadFixtureImageCompressed (std::shared_ptr< fml::Mapping > mapping)

static std::optional< DecompressedImageDecodeImageRGBA (const std::shared_ptr< CompressedImage > &compressed)

static std::shared_ptr< TextureCreateTextureForMapping (const std::shared_ptr< Context > &context, std::shared_ptr< fml::Mapping > mapping, bool enable_mipmapping=false)

static bool SupportsBackend (PlaygroundBackend backend)

- Protected Member Functions inherited from impeller::Playground
void SetWindowSize (ISize size)

- Protected Attributes inherited from impeller::Playground
const PlaygroundSwitches switches_


Detailed Description

Definition at line 17 of file playground_test.h.

Member Typedef Documentation

◆ InteropPlaygroundCallback

Definition at line 42 of file playground_test.h.

Constructor & Destructor Documentation

◆ PlaygroundTest() [1/2]

impeller::interop::testing::PlaygroundTest::PlaygroundTest ( )

◆ ~PlaygroundTest()

impeller::interop::testing::PlaygroundTest::~PlaygroundTest ( )
overridevirtualdefault

Reimplemented from impeller::PlaygroundTest.

◆ PlaygroundTest() [2/2]

impeller::interop::testing::PlaygroundTest::PlaygroundTest ( const PlaygroundTest )
delete

Member Function Documentation

◆ CreateContext()

ScopedObject< Context > impeller::interop::testing::PlaygroundTest::CreateContext ( ) const

Definition at line 59 of file playground_test.cc.

59  {
60  switch (GetBackend()) {
62  return Adopt<Context>(
65  Playground::GLProcAddressResolver playground_gl_proc_address_callback =
67  ImpellerProcAddressCallback gl_proc_address_callback =
68  [](const char* proc_name, void* user_data) -> void* {
69  return (*reinterpret_cast<Playground::GLProcAddressResolver*>(
70  user_data))(proc_name);
71  };
72  return Adopt<Context>(ImpellerContextCreateOpenGLESNew(
73  ImpellerGetVersion(), gl_proc_address_callback,
74  &playground_gl_proc_address_callback));
75  }
77  ImpellerContextVulkanSettings settings = {};
78  struct UserData {
80  } user_data;
81  user_data.resolver = CreateVKProcAddressResolver();
82  settings.user_data = &user_data;
84  settings.proc_address_callback = [](void* instance, //
85  const char* proc_name, //
86  void* user_data //
87  ) -> void* {
88  auto resolver = reinterpret_cast<UserData*>(user_data)->resolver;
89  if (resolver) {
90  return resolver(instance, proc_name);
91  } else {
92  return nullptr;
93  }
94  };
95  return Adopt<Context>(
97  }
98  FML_UNREACHABLE();
99 }
GLProcAddressResolver CreateGLProcAddressResolver() const
Definition: playground.cc:520
const PlaygroundSwitches switches_
Definition: playground.h:131
std::function< void *(void *instance, const char *proc_name)> VKProcAddressResolver
Definition: playground.h:122
std::function< void *(const char *proc_name)> GLProcAddressResolver
Definition: playground.h:118
VKProcAddressResolver CreateVKProcAddressResolver() const
Definition: playground.cc:525
PlaygroundBackend GetBackend() const
void *IMPELLER_NULLABLE(* ImpellerProcAddressCallback)(const char *IMPELLER_NONNULL proc_name, void *IMPELLER_NULLABLE user_data)
Definition: impeller.h:347
IMPELLER_EXTERN_C uint32_t ImpellerGetVersion()
Definition: impeller.cc:92
IMPELLER_EXTERN_C ImpellerContext ImpellerContextCreateVulkanNew(uint32_t version, const ImpellerContextVulkanSettings *settings)
Definition: impeller.cc:151
IMPELLER_EXTERN_C ImpellerContext ImpellerContextCreateMetalNew(uint32_t version)
Definition: impeller.cc:133
IMPELLER_EXTERN_C ImpellerContext ImpellerContextCreateOpenGLESNew(uint32_t version, ImpellerProcAddressCallback gl_proc_address_callback, void *gl_proc_address_callback_user_data)
Definition: impeller.cc:108
ImpellerVulkanProcAddressCallback IMPELLER_NONNULL proc_address_callback
Definition: impeller.h:634
void *IMPELLER_NULLABLE user_data
Definition: impeller.h:633

References impeller::Playground::CreateGLProcAddressResolver(), impeller::Playground::CreateVKProcAddressResolver(), impeller::PlaygroundSwitches::enable_vulkan_validation, ImpellerContextVulkanSettings::enable_vulkan_validation, impeller::PlaygroundTest::GetBackend(), impeller::interop::ImpellerContextCreateMetalNew(), impeller::interop::ImpellerContextCreateOpenGLESNew(), impeller::interop::ImpellerContextCreateVulkanNew(), impeller::interop::ImpellerGetVersion(), impeller::kMetal, impeller::kOpenGLES, impeller::kVulkan, ImpellerContextVulkanSettings::proc_address_callback, impeller::Playground::switches_, and ImpellerContextVulkanSettings::user_data.

◆ GetHPPContext()

hpp::Context impeller::interop::testing::PlaygroundTest::GetHPPContext ( )

Definition at line 181 of file playground_test.cc.

181  {
182  auto c_context = GetInteropContext().GetC();
183  ImpellerContextRetain(c_context);
184  return hpp::Context{c_context, hpp::AdoptTag::kAdopt};
185 }
IMPELLER_EXTERN_C void ImpellerContextRetain(ImpellerContext context)
Definition: impeller.cc:171

References GetInteropContext(), and impeller::interop::ImpellerContextRetain().

Referenced by OpenAssetAsHPPTexture().

◆ GetInteropContext()

ScopedObject< Context > impeller::interop::testing::PlaygroundTest::GetInteropContext ( )

Definition at line 168 of file playground_test.cc.

168  {
169  if (interop_context_) {
170  return interop_context_;
171  }
172
173  auto context = CreateSharedContext(GetBackend(), GetContext());
174  if (!context) {
175  return nullptr;
176  }
177  interop_context_ = std::move(context);
178  return interop_context_;
179 }
std::shared_ptr< Context > GetContext() const
Definition: playground.cc:91
static ScopedObject< Context > CreateSharedContext(PlaygroundBackend backend, std::shared_ptr< impeller::Context > shared_context)

References impeller::interop::testing::CreateSharedContext(), impeller::PlaygroundTest::GetBackend(), and impeller::Playground::GetContext().

Referenced by GetHPPContext(), and OpenPlaygroundHere().

◆ OpenAssetAsHPPMapping()

std::unique_ptr< hpp::Mapping > impeller::interop::testing::PlaygroundTest::OpenAssetAsHPPMapping ( std::string  asset_name) const

Definition at line 187 of file playground_test.cc.

188  {
189  std::shared_ptr<fml::Mapping> data =
190  OpenAssetAsMapping(std::move(asset_name));
191  if (!data) {
192  return nullptr;
193  }
194  return std::make_unique<hpp::Mapping>(data->GetMapping(), //
195  data->GetSize(), //
196  [data]() {} //
197  );
198 }
std::unique_ptr< fml::Mapping > OpenAssetAsMapping(std::string asset_name) const override
std::shared_ptr< const fml::Mapping > data
Definition: texture_gles.cc:68

References data, and impeller::PlaygroundTest::OpenAssetAsMapping().

◆ OpenAssetAsHPPTexture()

hpp::Texture impeller::interop::testing::PlaygroundTest::OpenAssetAsHPPTexture ( std::string  asset_name)

Definition at line 200 of file playground_test.cc.

200  {
201  auto compressed_data = OpenAssetAsMapping(std::move(asset_name));
202  if (!compressed_data) {
203  return {nullptr, hpp::AdoptTag::kAdopt};
204  }
205  auto compressed_image =
206  LoadFixtureImageCompressed(std::move(compressed_data));
207  if (!compressed_image) {
208  return {nullptr, hpp::AdoptTag::kAdopt};
209  }
210  auto decompressed_image = DecodeImageRGBA(compressed_image);
211  if (!decompressed_image.has_value()) {
212  return {nullptr, hpp::AdoptTag::kAdopt};
213  }
214  auto rgba_decompressed_image =
215  std::make_shared<DecompressedImage>(decompressed_image->ConvertToRGBA());
216  if (!rgba_decompressed_image || !rgba_decompressed_image->IsValid()) {
217  return {nullptr, hpp::AdoptTag::kAdopt};
218  }
219  auto context = GetHPPContext();
220  if (!context) {
221  return {nullptr, hpp::AdoptTag::kAdopt};
222  }
223
224  auto rgba_mapping = std::make_unique<hpp::Mapping>(
225  rgba_decompressed_image->GetAllocation()->GetMapping(),
226  rgba_decompressed_image->GetAllocation()->GetSize(),
227  [rgba_decompressed_image]() {});
228
229  return hpp::Texture::WithContents(
230  context,
233  .size = {rgba_decompressed_image->GetSize().width,
234  rgba_decompressed_image->GetSize().height},
235  .mip_count = 1u,
236  },
237  std::move(rgba_mapping));
238 }
static std::shared_ptr< CompressedImage > LoadFixtureImageCompressed(std::shared_ptr< fml::Mapping > mapping)
Definition: playground.cc:361
static std::optional< DecompressedImage > DecodeImageRGBA(const std::shared_ptr< CompressedImage > &compressed)
Definition: playground.cc:372
@ kImpellerPixelFormatRGBA8888
Definition: impeller.h:425
ImpellerPixelFormat pixel_format
Definition: impeller.h:621

References impeller::Playground::DecodeImageRGBA(), GetHPPContext(), kImpellerPixelFormatRGBA8888, impeller::Playground::LoadFixtureImageCompressed(), impeller::PlaygroundTest::OpenAssetAsMapping(), and ImpellerTextureDescriptor::pixel_format.

◆ OpenPlaygroundHere()

bool impeller::interop::testing::PlaygroundTest::OpenPlaygroundHere ( InteropPlaygroundCallback  callback)

Definition at line 127 of file playground_test.cc.

127  {
128  auto interop_context = GetInteropContext();
129  if (!interop_context) {
130  return false;
131  }
132  return Playground::OpenPlaygroundHere([&](RenderTarget& target) -> bool {
133  auto impeller_surface = std::make_shared<impeller::Surface>(target);
134  auto surface = CreateSharedSurface(GetBackend(), //
135  *interop_context.Get(), //
136  std::move(impeller_surface) //
137  );
138  if (!surface) {
139  VALIDATION_LOG << "Could not wrap test surface as an interop surface.";
140  return false;
141  }
142  return callback(interop_context, surface);
143  });
144 }
bool OpenPlaygroundHere(const RenderCallback &render_callback)
Definition: playground.cc:201
static ScopedObject< Surface > CreateSharedSurface(PlaygroundBackend backend, Context &context, std::shared_ptr< impeller::Surface > shared_surface)
#define VALIDATION_LOG
Definition: validation.h:91

References impeller::interop::testing::CreateSharedSurface(), impeller::PlaygroundTest::GetBackend(), GetInteropContext(), impeller::Playground::OpenPlaygroundHere(), and VALIDATION_LOG.

◆ operator=()

PlaygroundTest& impeller::interop::testing::PlaygroundTest::operator= ( const PlaygroundTest )
delete

◆ SetUp()

void impeller::interop::testing::PlaygroundTest::SetUp ( )
override

Definition at line 50 of file playground_test.cc.

50  {
52 }

References impeller::PlaygroundTest::SetUp().

◆ TearDown()

void impeller::interop::testing::PlaygroundTest::TearDown ( )
override

Definition at line 55 of file playground_test.cc.

References impeller::PlaygroundTest::TearDown().


The documentation for this class was generated from the following files:
