impeller::BlitResizeTextureCommandGLES Struct Reference

#include <blit_command_gles.h>

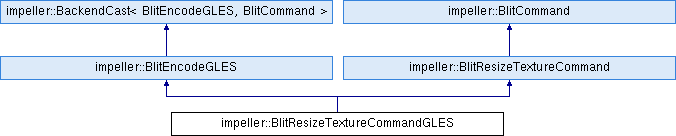

Inheritance diagram for impeller::BlitResizeTextureCommandGLES:
impeller::BlitEncodeGLES impeller::BlitResizeTextureCommand impeller::BackendCast< BlitEncodeGLES, BlitCommand > impeller::BlitCommand

Public Member Functions

 ~BlitResizeTextureCommandGLES () override

std::string GetLabel () const override

bool Encode (const ReactorGLES &reactor) const override

- Public Member Functions inherited from impeller::BlitEncodeGLES
virtual ~BlitEncodeGLES ()


Additional Inherited Members

- Static Public Member Functions inherited from impeller::BackendCast< BlitEncodeGLES, BlitCommand >
static BlitEncodeGLESCast (BlitCommand &base)

static const BlitEncodeGLESCast (const BlitCommand &base)

static BlitEncodeGLESCast (BlitCommand *base)

static const BlitEncodeGLESCast (const BlitCommand *base)

- Public Attributes inherited from impeller::BlitResizeTextureCommand
std::shared_ptr< Texturesource

std::shared_ptr< Texturedestination

- Public Attributes inherited from impeller::BlitCommand
std::string label


Detailed Description

Definition at line 62 of file blit_command_gles.h.

Constructor & Destructor Documentation

◆ ~BlitResizeTextureCommandGLES()

impeller::BlitResizeTextureCommandGLES::~BlitResizeTextureCommandGLES ( )
overridedefault

Member Function Documentation

◆ Encode()

bool impeller::BlitResizeTextureCommandGLES::Encode ( const ReactorGLES reactor) const
overridevirtual

Implements impeller::BlitEncodeGLES.

Definition at line 401 of file blit_command_gles.cc.

401  {
402  const auto& gl = reactor.GetProcTable();
403
404  // glBlitFramebuffer is a GLES3 proc. Since we target GLES2, we need to
405  // emulate the blit when it's not available in the driver.
406  if (!gl.BlitFramebuffer.IsAvailable()) {
407  // TODO(157064): Emulate the blit using a raster draw call here.
408  VALIDATION_LOG << "Texture blit fallback not implemented yet for GLES2.";
409  return false;
410  }
411
412  destination->SetCoordinateSystem(source->GetCoordinateSystem());
413
414  GLuint read_fbo = GL_NONE;
415  GLuint draw_fbo = GL_NONE;
416  fml::ScopedCleanupClosure delete_fbos([&gl, &read_fbo, &draw_fbo]() {
417  DeleteFBO(gl, read_fbo, GL_READ_FRAMEBUFFER);
418  DeleteFBO(gl, draw_fbo, GL_DRAW_FRAMEBUFFER);
419  });
420
421  {
422  auto read = ConfigureFBO(gl, source, GL_READ_FRAMEBUFFER);
423  if (!read.has_value()) {
424  return false;
425  }
426  read_fbo = read.value();
427  }
428
429  {
430  auto draw = ConfigureFBO(gl, destination, GL_DRAW_FRAMEBUFFER);
431  if (!draw.has_value()) {
432  return false;
433  }
434  draw_fbo = draw.value();
435  }
436
437  gl.Disable(GL_SCISSOR_TEST);
438  gl.Disable(GL_DEPTH_TEST);
439  gl.Disable(GL_STENCIL_TEST);
440
441  const IRect source_region = IRect::MakeSize(source->GetSize());
442  const IRect destination_region = IRect::MakeSize(destination->GetSize());
443
444  gl.BlitFramebuffer(source_region.GetX(), // srcX0
445  source_region.GetY(), // srcY0
446  source_region.GetWidth(), // srcX1
447  source_region.GetHeight(), // srcY1
448  destination_region.GetX(), // dstX0
449  destination_region.GetY(), // dstY0
450  destination_region.GetWidth(), // dstX1
451  destination_region.GetHeight(), // dstY1
452  GL_COLOR_BUFFER_BIT, // mask
453  GL_LINEAR // filter
454  );
455
456  return true;
457 }
static std::optional< GLuint > ConfigureFBO(const ProcTableGLES &gl, const std::shared_ptr< Texture > &texture, GLenum fbo_type)
IRect64 IRect
Definition: rect.h:795
static void DeleteFBO(const ProcTableGLES &gl, GLuint fbo, GLenum type)
std::shared_ptr< Texture > destination
Definition: blit_command.h:28
std::shared_ptr< Texture > source
Definition: blit_command.h:27
constexpr static TRect MakeSize(const TSize< U > &size)
Definition: rect.h:150
#define VALIDATION_LOG
Definition: validation.h:91

References impeller::ConfigureFBO(), impeller::DeleteFBO(), impeller::TRect< T >::GetHeight(), impeller::ReactorGLES::GetProcTable(), impeller::TRect< T >::GetWidth(), impeller::TRect< T >::GetX(), impeller::TRect< T >::GetY(), and VALIDATION_LOG.

◆ GetLabel()

std::string impeller::BlitResizeTextureCommandGLES::GetLabel ( ) const
overridevirtual

Implements impeller::BlitEncodeGLES.

Definition at line 397 of file blit_command_gles.cc.

397  {
398  return "Resize Texture";
399 }

The documentation for this struct was generated from the following files:
