#include <filter_contents.h>

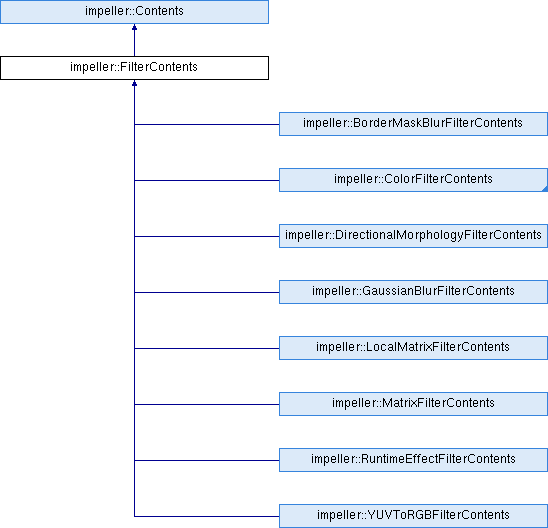

Inheritance diagram for impeller::FilterContents:

Public Types
enum class	BlurStyle { kNormal , kSolid , kOuter , kInner }

enum class	MorphType { kDilate , kErode }

Public Types inherited from impeller::Contents
using	ColorFilterProc = std::function< Color(Color)>

using	RenderProc = std::function< bool(const ContentContext &renderer, const Entity &entity, RenderPass &pass)>

using	CoverageProc = std::function< std::optional< Rect >(const Entity &entity)>

Public Member Functions
	FilterContents ()

	~FilterContents () override

void	SetInputs (FilterInput::Vector inputs)
	The input texture sources for this filter. Each input's emitted texture is expected to have premultiplied alpha colors. More...

void	SetEffectTransform (const Matrix &effect_transform)
	Sets the transform which gets appended to the effect of this filter. Note that this is in addition to the entity's transform. More...

std::optional< Entity >	GetEntity (const ContentContext &renderer, const Entity &entity, const std::optional< Rect > &coverage_hint) const
	Create an Entity that renders this filter's output. More...

bool	Render (const ContentContext &renderer, const Entity &entity, RenderPass &pass) const override

std::optional< Rect >	GetCoverage (const Entity &entity) const override
	Get the area of the render pass that will be affected when this contents is rendered. More...

std::optional< Snapshot >	RenderToSnapshot (const ContentContext &renderer, const Entity &entity, std::optional< Rect > coverage_limit=std::nullopt, const std::optional< SamplerDescriptor > &sampler_descriptor=std::nullopt, bool msaa_enabled=true, int32_t mip_count=1, std::string_view label="Filter Snapshot") const override
	Render this contents to a snapshot, respecting the entity's transform, path, clip depth, and blend mode. The result texture size is always the size of `GetCoverage(entity)`. More...

std::optional< Rect >	GetSourceCoverage (const Matrix &effect_transform, const Rect &output_limit) const
	Determines the coverage of source pixels that will be needed to produce results for the specified \|output_limit\| under the specified \|effect_transform\|. This is essentially a reverse of the \|GetCoverage\| method computing a source coverage from an intended \|output_limit\| coverage. More...

virtual Matrix	GetLocalTransform (const Matrix &parent_transform) const

Matrix	GetTransform (const Matrix &parent_transform) const

virtual void	SetRenderingMode (Entity::RenderingMode rendering_mode)
	Marks this filter chain as applying in a subpass scenario. More...

Public Member Functions inherited from impeller::Contents
	Contents ()

virtual	~Contents ()

void	SetCoverageHint (std::optional< Rect > coverage_hint)
	Hint that specifies the coverage area of this Contents that will actually be used during rendering. This is for optimization purposes only and can not be relied on as a clip. May optionally affect the result of `GetCoverage()`. More...

const std::optional< Rect > &	GetCoverageHint () const

virtual bool	IsOpaque (const Matrix &transform) const
	Whether this Contents only emits opaque source colors from the fragment stage. This value does not account for any entity properties (e.g. the blend mode), clips/visibility culling, or inherited opacity. More...

std::optional< Size >	GetColorSourceSize () const
	Return the color source's intrinsic size, if available. More...

void	SetColorSourceSize (Size size)

virtual void	SetInheritedOpacity (Scalar opacity)
	Inherit the provided opacity. More...

virtual std::optional< Color >	AsBackgroundColor (const Entity &entity, ISize target_size) const
	Returns a color if this Contents will flood the given `target_size` with a color. This output color is the "Source" color that will be used for the Entity's blend operation. More...

virtual bool	ApplyColorFilter (const ColorFilterProc &color_filter_proc)
	If possible, applies a color filter to this contents inputs on the CPU. More...

Static Public Member Functions
static std::shared_ptr< FilterContents >	MakeGaussianBlur (const FilterInput::Ref &input, Sigma sigma_x, Sigma sigma_y, Entity::TileMode tile_mode=Entity::TileMode::kDecal, BlurStyle mask_blur_style=BlurStyle::kNormal, const Geometry *mask_geometry=nullptr)

static std::shared_ptr< FilterContents >	MakeBorderMaskBlur (FilterInput::Ref input, Sigma sigma_x, Sigma sigma_y, BlurStyle blur_style=BlurStyle::kNormal)

static std::shared_ptr< FilterContents >	MakeDirectionalMorphology (FilterInput::Ref input, Radius radius, Vector2 direction, MorphType morph_type)

static std::shared_ptr< FilterContents >	MakeMorphology (FilterInput::Ref input, Radius radius_x, Radius radius_y, MorphType morph_type)

static std::shared_ptr< FilterContents >	MakeMatrixFilter (FilterInput::Ref input, const Matrix &matrix, const SamplerDescriptor &desc)

static std::shared_ptr< FilterContents >	MakeLocalMatrixFilter (FilterInput::Ref input, const Matrix &matrix)

static std::shared_ptr< FilterContents >	MakeYUVToRGBFilter (std::shared_ptr< Texture > y_texture, std::shared_ptr< Texture > uv_texture, YUVColorSpace yuv_color_space)

static std::shared_ptr< FilterContents >	MakeRuntimeEffect (FilterInput::Ref input, std::shared_ptr< RuntimeStage > runtime_stage, std::shared_ptr< std::vector< uint8_t >> uniforms, std::vector< RuntimeEffectContents::TextureInput > texture_inputs)

Static Public Member Functions inherited from impeller::Contents
static std::shared_ptr< Contents >	MakeAnonymous (RenderProc render_proc, CoverageProc coverage_proc)

Static Public Attributes
static const int32_t	kBlurFilterRequiredMipCount

Detailed Description

Definition at line 24 of file filter_contents.h.

Member Enumeration Documentation

◆ BlurStyle

enum impeller::FilterContents::BlurStyle

strong

Enumerator
kNormal	Blurred inside and outside.
kSolid	Solid inside, blurred outside.
kOuter	Nothing inside, blurred outside.
kInner	Blurred inside, nothing outside.

Definition at line 28 of file filter_contents.h.

                        {
     /// Blurred inside and outside.
     kNormal,
     /// Solid inside, blurred outside.
     kSolid,
     /// Nothing inside, blurred outside.
     kOuter,
     /// Blurred inside, nothing outside.
     kInner,
   };

◆ MorphType

enum impeller::FilterContents::MorphType

strong

Enumerator
kDilate
kErode

Definition at line 39 of file filter_contents.h.

39 { kDilate, kErode };

Constructor & Destructor Documentation

◆ FilterContents()

impeller::FilterContents::FilterContents ( )

default

◆ ~FilterContents()

impeller::FilterContents::~FilterContents ( )

overridedefault

Member Function Documentation

◆ GetCoverage()

std::optional< Rect > impeller::FilterContents::GetCoverage ( const Entity & entity ) const

overridevirtual

Get the area of the render pass that will be affected when this contents is rendered.

During rendering, coverage coordinates count pixels from the top left corner of the framebuffer.

Returns: The coverage rectangle. An std::nullopt result means that rendering this contents has no effect on the output color.

Implements impeller::Contents.

Definition at line 176 of file filter_contents.cc.

                                                                         {
   Entity entity_with_local_transform = entity.Clone();
   entity_with_local_transform.SetTransform(GetTransform(entity.GetTransform()));

   return GetLocalCoverage(entity_with_local_transform);
 }

References impeller::Entity::Clone(), impeller::Entity::GetTransform(), GetTransform(), and impeller::Entity::SetTransform().

Referenced by Render(), and impeller::testing::TEST_P().

◆ GetEntity()

std::optional< Entity > impeller::FilterContents::GetEntity	(	const ContentContext &	renderer,
		const Entity &	entity,
		const std::optional< Rect > &	coverage_hint
	)		const

Create an Entity that renders this filter's output.

Definition at line 232 of file filter_contents.cc.

                                                   {
   Entity entity_with_local_transform = entity.Clone();
   entity_with_local_transform.SetTransform(GetTransform(entity.GetTransform()));

   std::optional<Rect> coverage = GetLocalCoverage(entity_with_local_transform);
   if (!coverage.has_value() || coverage->IsEmpty()) {
     return std::nullopt;
   }

   return RenderFilter(inputs_,                      //
                       renderer,                     //
                       entity_with_local_transform,  //
                       effect_transform_,            //
                       coverage.value(),             //
                       coverage_hint                 //
   );
 }

References impeller::Entity::Clone(), impeller::Entity::GetTransform(), GetTransform(), and impeller::Entity::SetTransform().

Referenced by Render(), RenderToSnapshot(), and impeller::testing::TEST_P().

◆ GetLocalTransform()

Matrix impeller::FilterContents::GetLocalTransform ( const Matrix & parent_transform ) const

virtual

Reimplemented in impeller::LocalMatrixFilterContents.

Definition at line 280 of file filter_contents.cc.

                                                                              {
   return Matrix();
 }

Referenced by GetTransform().

◆ GetSourceCoverage()

std::optional< Rect > impeller::FilterContents::GetSourceCoverage	(	const Matrix &	effect_transform,
		const Rect &	output_limit
	)		const

Both the |output_limit| and the return value are in the transformed coordinate space, and so do not need to be transformed or inverse transformed by the |effect_transform| but individual parameters on the filter might be in the untransformed space and should be transformed by the |effect_transform| before applying them to the coverages.

The method computes a result such that if the filter is applied to a set of pixels filling the computed source coverage, it should produce an output that covers the entire specified |output_limit|.

This is useful for subpass rendering scenarios where a filter will be applied to the output of the subpass and we need to determine how large of a render target to allocate in order to collect all pixels that might affect the supplied output coverage limit. While we might end up clipping the rendering of the subpass to its destination, we want to avoid clipping out any pixels that contribute to the output limit via the filtering operation.

Returns: The coverage bounds in the transformed space of any source pixel that may be needed to produce output for the indicated filter that covers the indicated |output_limit|.

Definition at line 210 of file filter_contents.cc.

                                     {
   auto filter_input_coverage =
       GetFilterSourceCoverage(effect_transform_, output_limit);

   if (!filter_input_coverage.has_value()) {
     return std::nullopt;
   }

   std::optional<Rect> inputs_coverage;
   for (const auto& input : inputs_) {
     auto input_coverage = input->GetSourceCoverage(
         effect_transform, filter_input_coverage.value());
     if (!input_coverage.has_value()) {
       return std::nullopt;
     }
     inputs_coverage = Rect::Union(inputs_coverage, input_coverage.value());
   }
   return inputs_coverage;
 }

References impeller::TRect< Scalar >::Union().

◆ GetTransform()

Matrix impeller::FilterContents::GetTransform ( const Matrix & parent_transform ) const

Definition at line 284 of file filter_contents.cc.

                                                                         {
   return parent_transform * GetLocalTransform(parent_transform);
 }

References GetLocalTransform().

Referenced by GetCoverage(), and GetEntity().

◆ MakeBorderMaskBlur()

std::shared_ptr< FilterContents > impeller::FilterContents::MakeBorderMaskBlur	(	FilterInput::Ref	input,
		Sigma	sigma_x,
		Sigma	sigma_y,
		BlurStyle	blur_style = `BlurStyle::kNormal`
	)

static

Definition at line 50 of file filter_contents.cc.

                           {
   auto filter = std::make_shared<BorderMaskBlurFilterContents>();
   filter->SetInputs({std::move(input)});
   filter->SetSigma(sigma_x, sigma_y);
   filter->SetBlurStyle(blur_style);
   return filter;
 }

Referenced by impeller::testing::TEST_P().

◆ MakeDirectionalMorphology()

std::shared_ptr< FilterContents > impeller::FilterContents::MakeDirectionalMorphology	(	FilterInput::Ref	input,
		Radius	radius,
		Vector2	direction,
		MorphType	morph_type
	)

static

Definition at line 62 of file filter_contents.cc.

                           {
   auto filter = std::make_shared<DirectionalMorphologyFilterContents>();
   filter->SetInputs({std::move(input)});
   filter->SetRadius(radius);
   filter->SetDirection(direction);
   filter->SetMorphType(morph_type);
   return filter;
 }

Referenced by MakeMorphology().

◆ MakeGaussianBlur()

std::shared_ptr< FilterContents > impeller::FilterContents::MakeGaussianBlur	(	const FilterInput::Ref &	input,
		Sigma	sigma_x,
		Sigma	sigma_y,
		Entity::TileMode	tile_mode = `Entity::TileMode::kDecal`,
		FilterContents::BlurStyle	mask_blur_style = `BlurStyle::kNormal`,
		const Geometry *	mask_geometry = `nullptr`
	)

static

Creates a gaussian blur that operates in 2 dimensions. See also: MakeDirectionalGaussianBlur

Definition at line 37 of file filter_contents.cc.

                                    {
   auto blur = std::make_shared<GaussianBlurFilterContents>(
       sigma_x.sigma, sigma_y.sigma, tile_mode, mask_blur_style, mask_geometry);
   blur->SetInputs({input});
   return blur;
 }

References impeller::Sigma::sigma.

Referenced by impeller::testing::TEST_P(), and impeller::WrapInput().

◆ MakeLocalMatrixFilter()

std::shared_ptr< FilterContents > impeller::FilterContents::MakeLocalMatrixFilter	(	FilterInput::Ref	input,
		const Matrix &	matrix
	)

static

Definition at line 98 of file filter_contents.cc.

                           {
   auto filter = std::make_shared<LocalMatrixFilterContents>();
   filter->SetInputs({std::move(input)});
   filter->SetMatrix(matrix);
   return filter;
 }

Referenced by impeller::WrapInput().

◆ MakeMatrixFilter()

std::shared_ptr< FilterContents > impeller::FilterContents::MakeMatrixFilter	(	FilterInput::Ref	input,
		const Matrix &	matrix,
		const SamplerDescriptor &	desc
	)

static

Definition at line 87 of file filter_contents.cc.

                                    {
   auto filter = std::make_shared<MatrixFilterContents>();
   filter->SetInputs({std::move(input)});
   filter->SetMatrix(matrix);
   filter->SetSamplerDescriptor(desc);
   return filter;
 }

Referenced by impeller::testing::TEST(), and impeller::WrapInput().

◆ MakeMorphology()

std::shared_ptr< FilterContents > impeller::FilterContents::MakeMorphology	(	FilterInput::Ref	input,
		Radius	radius_x,
		Radius	radius_y,
		MorphType	morph_type
	)

static

Definition at line 75 of file filter_contents.cc.

                           {
   auto x_morphology = MakeDirectionalMorphology(std::move(input), radius_x,
                                                 Point(1, 0), morph_type);
   auto y_morphology = MakeDirectionalMorphology(
       FilterInput::Make(x_morphology), radius_y, Point(0, 1), morph_type);
   return y_morphology;
 }

References impeller::FilterInput::Make(), and MakeDirectionalMorphology().

Referenced by impeller::testing::TEST_P(), and impeller::WrapInput().

◆ MakeRuntimeEffect()

std::shared_ptr< FilterContents > impeller::FilterContents::MakeRuntimeEffect	(	FilterInput::Ref	input,
		std::shared_ptr< RuntimeStage >	runtime_stage,
		std::shared_ptr< std::vector< uint8_t >>	uniforms,
		std::vector< RuntimeEffectContents::TextureInput >	texture_inputs
	)

static

Definition at line 118 of file filter_contents.cc.

                                                                  {
   auto filter = std::make_shared<impeller::RuntimeEffectFilterContents>();
   filter->SetInputs({std::move(input)});
   filter->SetRuntimeStage(std::move(runtime_stage));
   filter->SetUniforms(std::move(uniforms));
   filter->SetTextureInputs(std::move(texture_inputs));
   return filter;
 }

Referenced by impeller::WrapInput().

◆ MakeYUVToRGBFilter()

std::shared_ptr< FilterContents > impeller::FilterContents::MakeYUVToRGBFilter	(	std::shared_ptr< Texture >	y_texture,
		std::shared_ptr< Texture >	uv_texture,
		YUVColorSpace	yuv_color_space
	)

static

Definition at line 107 of file filter_contents.cc.

                                    {
   auto filter = std::make_shared<impeller::YUVToRGBFilterContents>();
   filter->SetInputs({impeller::FilterInput::Make(y_texture),
                      impeller::FilterInput::Make(uv_texture)});
   filter->SetYUVColorSpace(yuv_color_space);
   return filter;
 }

References impeller::FilterInput::Make().

Referenced by impeller::DlImageImpeller::MakeFromYUVTextures(), and impeller::testing::TEST_P().

◆ Render()

bool impeller::FilterContents::Render	(	const ContentContext &	renderer,
		const Entity &	entity,
		RenderPass &	pass
	)		const

overridevirtual

Implements impeller::Contents.

Definition at line 147 of file filter_contents.cc.

                                                     {
   auto filter_coverage = GetCoverage(entity);
   if (!filter_coverage.has_value()) {
     return true;
   }

   // Run the filter.

   auto maybe_entity = GetEntity(renderer, entity, GetCoverageHint());
   if (!maybe_entity.has_value()) {
     return true;
   }
   maybe_entity->SetClipDepth(entity.GetClipDepth());
   return maybe_entity->Render(renderer, pass);
 }

References impeller::Entity::GetClipDepth(), GetCoverage(), impeller::Contents::GetCoverageHint(), and GetEntity().

◆ RenderToSnapshot()

std::optional< Snapshot > impeller::FilterContents::RenderToSnapshot	(	const ContentContext &	renderer,
		const Entity &	entity,
		std::optional< Rect >	coverage_limit = `std::nullopt`,
		const std::optional< SamplerDescriptor > &	sampler_descriptor = `std::nullopt`,
		bool	msaa_enabled = `true`,
		int32_t	mip_count = `1`,
		std::string_view	label = `"Filter Snapshot"`
	)		const

overridevirtual

Render this contents to a snapshot, respecting the entity's transform, path, clip depth, and blend mode. The result texture size is always the size of GetCoverage(entity).

Reimplemented from impeller::Contents.

Definition at line 253 of file filter_contents.cc.

                                 {
   // Resolve the render instruction (entity) from the filter and render it to a
   // snapshot.
   if (std::optional<Entity> result =
           GetEntity(renderer, entity, coverage_limit);
       result.has_value()) {
     return result->GetContents()->RenderToSnapshot(
         renderer,        // renderer
         result.value(),  // entity
         coverage_limit,  // coverage_limit
         std::nullopt,    // sampler_descriptor
         true,            // msaa_enabled
         /*mip_count=*/mip_count,
         label  // label
     );
   }

   return std::nullopt;
 }

References GetEntity().

◆ SetEffectTransform()

void impeller::FilterContents::SetEffectTransform ( const Matrix & effect_transform )

Sets the transform which gets appended to the effect of this filter. Note that this is in addition to the entity's transform.

This is useful for subpass rendering scenarios where it's difficult to encode the current transform of the layer into the Entity being rendered.

Definition at line 139 of file filter_contents.cc.

                                                                       {
   effect_transform_ = effect_transform;

   for (auto& input : inputs_) {
     input->SetEffectTransform(effect_transform);
   }
 }

Referenced by impeller::testing::TEST_P().

◆ SetInputs()

void impeller::FilterContents::SetInputs ( FilterInput::Vector inputs )

The input texture sources for this filter. Each input's emitted texture is expected to have premultiplied alpha colors.

The number of required or optional textures depends on the particular filter's implementation.

Definition at line 135 of file filter_contents.cc.

                                                        {
   inputs_ = std::move(inputs);
 }

Referenced by impeller::testing::TEST_P().

◆ SetRenderingMode()

void impeller::FilterContents::SetRenderingMode ( Entity::RenderingMode rendering_mode )

virtual

Marks this filter chain as applying in a subpass scenario.

    Subpasses render in screenspace, and this setting informs filters
    that the current transform matrix of the entity is not stored
    in the Entity transform matrix. Instead, the effect transform
    is used in this case.

Reimplemented in impeller::MatrixFilterContents.

Definition at line 288 of file filter_contents.cc.

                                                                         {
   for (auto& input : inputs_) {
     input->SetRenderingMode(rendering_mode);
   }
 }

Referenced by impeller::MatrixFilterContents::SetRenderingMode().

Member Data Documentation

◆ kBlurFilterRequiredMipCount

const int32_t impeller::FilterContents::kBlurFilterRequiredMipCount

static

Initial value:

=

GaussianBlurFilterContents::kBlurFilterRequiredMipCount

impeller::FilterContents::kBlurFilterRequiredMipCount

static const int32_t kBlurFilterRequiredMipCount

Definition: filter_contents.h:26

Definition at line 26 of file filter_contents.h.

The documentation for this class was generated from the following files:

impeller/entity/contents/filters/filter_contents.h
impeller/entity/contents/filters/filter_contents.cc

Public Types

Public Member Functions

Static Public Member Functions

Static Public Attributes

Detailed Description

Member Enumeration Documentation

◆ BlurStyle

◆ MorphType

Constructor & Destructor Documentation

◆ FilterContents()

◆ ~FilterContents()

Member Function Documentation

◆ GetCoverage()

◆ GetEntity()

◆ GetLocalTransform()

◆ GetSourceCoverage()

◆ GetTransform()

◆ MakeBorderMaskBlur()

◆ MakeDirectionalMorphology()

◆ MakeGaussianBlur()

◆ MakeLocalMatrixFilter()

◆ MakeMatrixFilter()

◆ MakeMorphology()

◆ MakeRuntimeEffect()

◆ MakeYUVToRGBFilter()

◆ Render()

◆ RenderToSnapshot()

◆ SetEffectTransform()

◆ SetInputs()

◆ SetRenderingMode()

Member Data Documentation

◆ kBlurFilterRequiredMipCount
