impeller::SolidRRectLikeBlurContents Class Referenceabstract

A base class for SolidRRectBlurContents and SolidRSuperellipseBlurContents. More...

#include <solid_rrect_like_blur_contents.h>

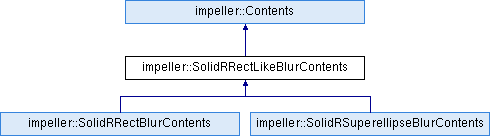

Inheritance diagram for impeller::SolidRRectLikeBlurContents:
impeller::Contents impeller::SolidRRectBlurContents impeller::SolidRSuperellipseBlurContents

Classes

struct  PassContext


Public Member Functions

 ~SolidRRectLikeBlurContents () override

void SetShape (Rect rect, Scalar corner_radius)

void SetSigma (Sigma sigma)

void SetColor (Color color)

Color GetColor () const

std::optional< RectGetCoverage (const Entity &entity) const override
 Get the area of the render pass that will be affected when this contents is rendered. More...

bool Render (const ContentContext &renderer, const Entity &entity, RenderPass &pass) const override

bool ApplyColorFilter (const ColorFilterProc &color_filter_proc) override
 If possible, applies a color filter to this contents inputs on the CPU. More...

- Public Member Functions inherited from impeller::Contents
 Contents ()

virtual ~Contents ()

void SetCoverageHint (std::optional< Rect > coverage_hint)
 Hint that specifies the coverage area of this Contents that will actually be used during rendering. This is for optimization purposes only and can not be relied on as a clip. May optionally affect the result of GetCoverage(). More...

const std::optional< Rect > & GetCoverageHint () const

virtual bool IsOpaque (const Matrix &transform) const
 Whether this Contents only emits opaque source colors from the fragment stage. This value does not account for any entity properties (e.g. the blend mode), clips/visibility culling, or inherited opacity. More...

virtual std::optional< SnapshotRenderToSnapshot (const ContentContext &renderer, const Entity &entity, std::optional< Rect > coverage_limit=std::nullopt, const std::optional< SamplerDescriptor > &sampler_descriptor=std::nullopt, bool msaa_enabled=true, int32_t mip_count=1, std::string_view label="Snapshot") const
 Render this contents to a snapshot, respecting the entity's transform, path, clip depth, and blend mode. The result texture size is always the size of GetCoverage(entity). More...

std::optional< SizeGetColorSourceSize () const
 Return the color source's intrinsic size, if available. More...

void SetColorSourceSize (Size size)

virtual void SetInheritedOpacity (Scalar opacity)
 Inherit the provided opacity. More...

virtual std::optional< ColorAsBackgroundColor (const Entity &entity, ISize target_size) const
 Returns a color if this Contents will flood the given target_size with a color. This output color is the "Source" color that will be used for the Entity's blend operation. More...


Protected Member Functions

 SolidRRectLikeBlurContents ()

virtual bool SetPassInfo (RenderPass &pass, const ContentContext &renderer, PassContext &pass_context) const =0

Rect GetRect () const

Scalar GetCornerRadius () const

Sigma GetSigma () const


Static Protected Member Functions

static Vector4 Concat (Vector2 &a, Vector2 &b)


Additional Inherited Members

- Public Types inherited from impeller::Contents
using ColorFilterProc = std::function< Color(Color)>

using RenderProc = std::function< bool(const ContentContext &renderer, const Entity &entity, RenderPass &pass)>

using CoverageProc = std::function< std::optional< Rect >(const Entity &entity)>

- Static Public Member Functions inherited from impeller::Contents
static std::shared_ptr< ContentsMakeAnonymous (RenderProc render_proc, CoverageProc coverage_proc)


Detailed Description

Constructor & Destructor Documentation

◆ ~SolidRRectLikeBlurContents()

impeller::SolidRRectLikeBlurContents::~SolidRRectLikeBlurContents ( )
overridedefault

◆ SolidRRectLikeBlurContents()

impeller::SolidRRectLikeBlurContents::SolidRRectLikeBlurContents ( )
protecteddefault

Member Function Documentation

◆ ApplyColorFilter()

bool impeller::SolidRRectLikeBlurContents::ApplyColorFilter ( const ColorFilterProc color_filter_proc)
overridevirtual

If possible, applies a color filter to this contents inputs on the CPU.

This method will either fully apply the color filter or perform no action. Partial/incorrect application of the color filter will never occur.

Parameters
[in]color_filter_procA function that filters a given unpremultiplied color to produce a new unpremultiplied color.
Returns
True if the color filter was able to be fully applied to all all relevant inputs. Otherwise, this operation is a no-op and false is returned.

Reimplemented from impeller::Contents.

Definition at line 187 of file solid_rrect_like_blur_contents.cc.

188  {
189  color_ = color_filter_proc(color_);
190  return true;
191 }

◆ Concat()

Vector4 impeller::SolidRRectLikeBlurContents::Concat ( Vector2 a,
Vector2 b
)
staticprotected

Definition at line 193 of file solid_rrect_like_blur_contents.cc.

193  {
194  return {a.x, a.y, b.x, b.y};
195 }

References impeller::saturated::b, impeller::TPoint< T >::x, and impeller::TPoint< T >::y.

Referenced by impeller::SolidRRectBlurContents::SetPassInfo().

◆ GetColor()

Color impeller::SolidRRectLikeBlurContents::GetColor ( ) const

Definition at line 46 of file solid_rrect_like_blur_contents.cc.

46  {
47  return color_;
48 }

Referenced by impeller::SolidRRectBlurContents::SetPassInfo().

◆ GetCornerRadius()

Scalar impeller::SolidRRectLikeBlurContents::GetCornerRadius ( ) const
inlineprotected

Definition at line 66 of file solid_rrect_like_blur_contents.h.

66 { return corner_radius_; }

◆ GetCoverage()

std::optional< Rect > impeller::SolidRRectLikeBlurContents::GetCoverage ( const Entity entity) const
overridevirtual

Get the area of the render pass that will be affected when this contents is rendered.

During rendering, coverage coordinates count pixels from the top left corner of the framebuffer.

Returns
The coverage rectangle. An std::nullopt result means that rendering this contents has no effect on the output color.

Implements impeller::Contents.

Definition at line 108 of file solid_rrect_like_blur_contents.cc.

109  {
110  Scalar radius = PadForSigma(sigma_.sigma);
111
112  return rect_.Expand(radius).TransformBounds(entity.GetTransform());
113 }
float Scalar
Definition: scalar.h:19
Scalar sigma
Definition: sigma.h:33
constexpr TRect< T > Expand(T left, T top, T right, T bottom) const
Returns a rectangle with expanded edges. Negative expansion results in shrinking.
Definition: rect.h:622
constexpr TRect TransformBounds(const Matrix &transform) const
Creates a new bounding box that contains this transformed rectangle.
Definition: rect.h:476

References impeller::TRect< T >::Expand(), impeller::Entity::GetTransform(), impeller::Sigma::sigma, and impeller::TRect< T >::TransformBounds().

◆ GetRect()

Rect impeller::SolidRRectLikeBlurContents::GetRect ( ) const
inlineprotected

Definition at line 65 of file solid_rrect_like_blur_contents.h.

65 { return rect_; }

◆ GetSigma()

Sigma impeller::SolidRRectLikeBlurContents::GetSigma ( ) const
inlineprotected

Definition at line 67 of file solid_rrect_like_blur_contents.h.

67 { return sigma_; }

◆ Render()

bool impeller::SolidRRectLikeBlurContents::Render ( const ContentContext renderer,
const Entity entity,
RenderPass pass
) const
overridevirtual

Implements impeller::Contents.

Definition at line 115 of file solid_rrect_like_blur_contents.cc.

117  {
118  using VS = RrectLikeBlurVertexShader;
119
120  Matrix basis_invert = entity.GetTransform().Basis().Invert();
121  Vector2 max_sigmas =
122  Vector2((basis_invert * Vector2(500.f, 0.f)).GetLength(),
123  (basis_invert * Vector2(0.f, 500.f)).GetLength());
124  Scalar max_sigma = std::min(max_sigmas.x, max_sigmas.y);
125  // Clamp the max kernel width/height to 1000 (@ 2x) to limit the extent
126  // of the blur and to kEhCloseEnough to prevent NaN calculations
127  // trying to evaluate a Gaussian distribution with a sigma of 0.
128  auto blur_sigma = std::clamp(sigma_.sigma, kEhCloseEnough, max_sigma);
129  // Increase quality by making the radius a bit bigger than the typical
130  // sigma->radius conversion we use for slower blurs.
131  Scalar blur_radius = PadForSigma(blur_sigma);
132  Rect positive_rect = rect_.GetPositive();
133  Scalar left = -blur_radius;
134  Scalar top = -blur_radius;
135  Scalar right = positive_rect.GetWidth() + blur_radius;
136  Scalar bottom = positive_rect.GetHeight() + blur_radius;
137
138  ContentContextOptions opts = OptionsFromPassAndEntity(pass, entity);
139  opts.primitive_type = PrimitiveType::kTriangleStrip;
140  Color color = color_;
141  if (entity.GetBlendMode() == BlendMode::kClear) {
142  opts.is_for_rrect_blur_clear = true;
143  color = Color::White();
144  }
145
146  std::array<VS::PerVertexData, 4> vertices = {
147  VS::PerVertexData{Point(left, top)},
148  VS::PerVertexData{Point(right, top)},
149  VS::PerVertexData{Point(left, bottom)},
150  VS::PerVertexData{Point(right, bottom)},
151  };
152
153  PassContext pass_context = {
154  .opts = opts,
155  };
156
157  Scalar radius = std::min(std::clamp(corner_radius_, kEhCloseEnough,
158  positive_rect.GetWidth() * 0.5f),
159  std::clamp(corner_radius_, kEhCloseEnough,
160  positive_rect.GetHeight() * 0.5f));
161  if (!PopulateFragContext(pass_context, blur_sigma, positive_rect.GetCenter(),
162  Point(positive_rect.GetSize()), radius)) {
163  return true;
164  }
165
166  if (!SetPassInfo(pass, renderer, pass_context)) {
167  return true;
168  }
169
170  VS::FrameInfo frame_info;
171  frame_info.mvp = Entity::GetShaderTransform(
172  entity.GetShaderClipDepth(), pass,
173  entity.GetTransform() *
174  Matrix::MakeTranslation(positive_rect.GetOrigin()));
175
176  auto& host_buffer = renderer.GetTransientsBuffer();
177  pass.SetVertexBuffer(CreateVertexBuffer(vertices, host_buffer));
178  VS::BindFrameInfo(pass, host_buffer.EmplaceUniform(frame_info));
179
180  if (!pass.Draw().ok()) {
181  return false;
182  }
183
184  return true;
185 }
Matrix GetShaderTransform(const RenderPass &pass) const
Definition: entity.cc:48
virtual bool SetPassInfo(RenderPass &pass, const ContentContext &renderer, PassContext &pass_context) const =0
Vector2 blur_radius
Blur radius in source pixels based on scaled_sigma.
Point Vector2
Definition: point.h:331
constexpr float kEhCloseEnough
Definition: constants.h:57
TRect< Scalar > Rect
Definition: rect.h:792
TPoint< Scalar > Point
Definition: point.h:327
VertexBuffer CreateVertexBuffer(std::array< VertexType, size > input, HostBuffer &host_buffer)
Create an index-less vertex buffer from a fixed size array.
LinePipeline::VertexShader VS
ContentContextOptions OptionsFromPassAndEntity(const RenderPass &pass, const Entity &entity)
Definition: contents.cc:34
static constexpr Color White()
Definition: color.h:264
static constexpr Matrix MakeTranslation(const Vector3 &t)
Definition: matrix.h:95
constexpr TRect GetPositive() const
Get a version of this rectangle that has a non-negative size.
Definition: rect.h:402

References impeller::Matrix::Basis(), blur_radius, impeller::CreateVertexBuffer(), impeller::RenderPass::Draw(), impeller::Entity::GetBlendMode(), impeller::TRect< T >::GetCenter(), impeller::TRect< T >::GetHeight(), impeller::TRect< T >::GetOrigin(), impeller::TRect< T >::GetPositive(), impeller::Entity::GetShaderClipDepth(), impeller::Entity::GetShaderTransform(), impeller::TRect< T >::GetSize(), impeller::Entity::GetTransform(), impeller::ContentContext::GetTransientsBuffer(), impeller::TRect< T >::GetWidth(), impeller::Matrix::Invert(), impeller::ContentContextOptions::is_for_rrect_blur_clear, impeller::kClear, impeller::kEhCloseEnough, impeller::kTriangleStrip, impeller::Matrix::MakeTranslation(), impeller::OptionsFromPassAndEntity(), impeller::SolidRRectLikeBlurContents::PassContext::opts, impeller::ContentContextOptions::primitive_type, SetPassInfo(), impeller::RenderPass::SetVertexBuffer(), impeller::Sigma::sigma, impeller::Color::White(), impeller::TPoint< T >::x, and impeller::TPoint< T >::y.

◆ SetColor()

void impeller::SolidRRectLikeBlurContents::SetColor ( Color  color)

Definition at line 42 of file solid_rrect_like_blur_contents.cc.

42  {
43  color_ = color.Premultiply();
44 }
constexpr Color Premultiply() const
Definition: color.h:212

References impeller::Color::Premultiply().

◆ SetPassInfo()

virtual bool impeller::SolidRRectLikeBlurContents::SetPassInfo ( RenderPass pass,
const ContentContext renderer,
PassContext pass_context
) const
protectedpure virtual

Implemented in impeller::SolidRRectBlurContents.

Referenced by Render().

◆ SetShape()

void impeller::SolidRRectLikeBlurContents::SetShape ( Rect  rect,
Scalar  corner_radius
)

Definition at line 33 of file solid_rrect_like_blur_contents.cc.

33  {
34  rect_ = rect;
35  corner_radius_ = corner_radius;
36 }

◆ SetSigma()

void impeller::SolidRRectLikeBlurContents::SetSigma ( Sigma  sigma)

Definition at line 38 of file solid_rrect_like_blur_contents.cc.

38  {
39  sigma_ = sigma;
40 }

The documentation for this class was generated from the following files:
